Rotary kiln
Cement rotary kiln/Industrial furnace

       We can supply Pengfei brand rotary kiln (titanium pigment kiln, sintering furnace, industrial furnace, kiln, acid pellet) made by Jiangsu Pengfei Group Co., Ltd. whose specifications are Φ3.2×52m,Φ3.5×54m,dia.4.0×60m,d4.3×64m,Φ4.8×74m and Φ5.0×78m and used for 8000t/d, 5000t/d and 2500t/d new dry basis complete rotary kiln equipments. Pengfei brand rotary kiln is the main equipment for calcining cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc. The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc. It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.
    Through the technical renovations, the rotary kiln calcining system equipment made by Pengfei has adopted the advanced hydraulic thrust roller device, the high measuring precession plunger pump, the variable speed adjusted valve, the contact graphite block sealing device and the other national advanced technologies. In order to raise up automation degree, the industrial TV has been used at the kiln head for monitoring of kiln, the simulation phosphor screen has been used for display of process flow; the infrared scanning system has been adopted for calcining zone to directly reflect the burning conditions on the computer. With the use of these new of these new technologies, it is direct in vision, convenient in operation and reliable in use. Therefore, the thermal condition can be stabilized and the running rate of equipment can be raised. Compared to same sized equipment, its running rate has been raised 10% up, production has been increased 5-10% and heat consumption has been reduced 15% down.

Technical parameter

Specification(m)
φ2.8/2.5×44
φ3×48
φ3.2×50
φ3.3×50
φ3.5×54
φ4×60
φ4.3×64
φ4.8×74
φ5.0×74
φ5.6×87
φ6.0×95
Capacity(t/d)
300
600-700
1000
1200
1500-1800
2500
3500
5000
6000
8000
10000
Slope of the kiln shell (%)
3.5
3.5
3.5
4
4
4
4
4
4
4
4
No.of supporters
3
3
3
3
3
3
3
3
3
3
3
Type of thrust roller
Mechanical
Mechanicalor Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Rotary speed of kiln
Main driving (r/min)
0.445-2.22
0.676-3.38
0.36-3.57
0.36-3.57
0.39-3.9
0.41-4.07
0.4-4.0
0.35-4
0.35-4
Max4.23
Max5
Auxiliary driving (r/min)
4.75
9.36
6.5
5.61
7.66
8.2
7.93
8.52
7.58
8.7
9.2
Main
driving
Motor
Type
ZSN4-225-21
Z2-101
ZSN4-280-191B
ZSN4-280-191B
ZSN4-315-092
ZSN4-355-092
ZSN4-355-12
ZSN4-450-092Lp44
ZSN4-450-092
ZSN4-450-12
ZSN4-500-092
Rated power(kw)
55
100
160
160
220
315
400
630
710
800
950×2
Seed regulation
Range(r/min)
~1000
~1500
1500
1500
1000
1000
100-1000
1500
87.5~1000
100~1000
100~1000
Rated voltage(V)
440
220
440
440
440
440
440
660
600
600
600
Reducer
Type
ZS145-1-1
ZS145-1-1
ZSY-450-40-V
ZSY450-40
NZS995-28VIBL
YNS1110-22.4VBR
YNS1400-3105VIBL
JH710C-SW305-40
JH280C-45
JH900C-SW305-25
JH900C-SW305-28
Total speed ratio
49-63
50
40
40
28
22.4
31.5
42.226
28
23.901
26.646
Auxiliary
driving
Motor
Type
Y122M-4
Y160M-6
Y160M-4B
Y160M-4
Y200L1-6
Y180L-4
Y200L-4
Y225M-4 lp44
Y250M-4
Y280M-4
Y315M1-4
Rated power (kw)
4
7.5
15
11
18.5
22
30
55
55
90
132
Rated rotary
Speed (r/min)
1440
970
1460
1460
970
1470
1470
1480
1480
1480
1490
Rated voltage(v)
380
380
380
380
380
380
380
380
380
380
380
Reducer
Type
ZL35-16
ZL35-7-1
ZSY160-31.5-‖
ZSY355-31.5
ZSY355
YNS440-45‖R
YNS497-45ZC
JH220C-SW302-28
JH280C-45
ZSY400-35.5-︱
ZSY450-35.5-︱
Total speed ratio
40.44
14
31.5
31.5
45
45
45
28
45
35.795
35.795
Totalweight (excluding refractory brick)(t)
177
213
280.6
317
341
434
562
854
885
1201
1580

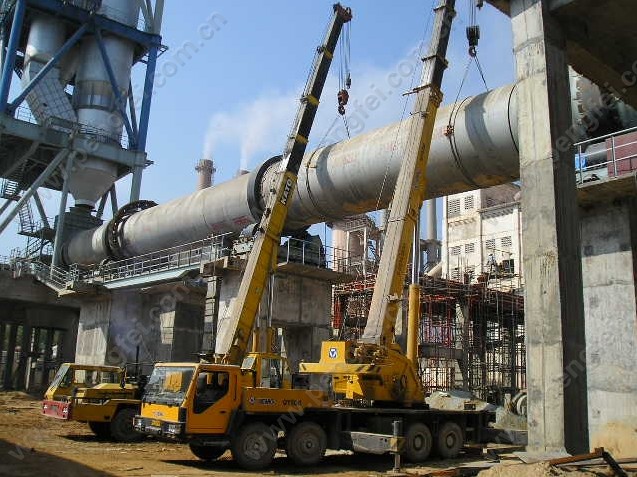

rotary kiln

===========================================================================================================================================

     Jiangsu Pengfei Group Co., Ltd has the great comprehensive ability to provide the best quality services on turn-key basis with the complete equipment、 the installation and the debugging for the new type dry process rotary kiln cement factories under the daily capacity of 8000ton、5000ton and 2500ton and compound fertilizer plants under the annual capacities of the 300000ton. The “Pengfei” brand rotary kiln cement complete equipment have been sold exported to Russia、The Kingdom of Denmark、Germany、kazakhstan、Mongolia、Ukraine、Uruguay、uzbekistan、 Bangladesh、Pakistan、Laos、Peru、India and so on . MD export project are X18, X519, Son La, Lang Son, Da Ye, Chai Shai Cement factories in Vietnam, Tiger-Head, King Elephant Cement Plants in the union of  MD and so on . All of these cement complete equipment production line have been widely praised by the international friends.
